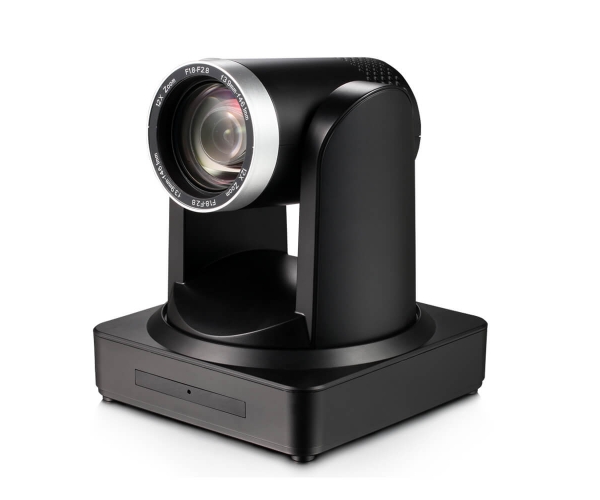

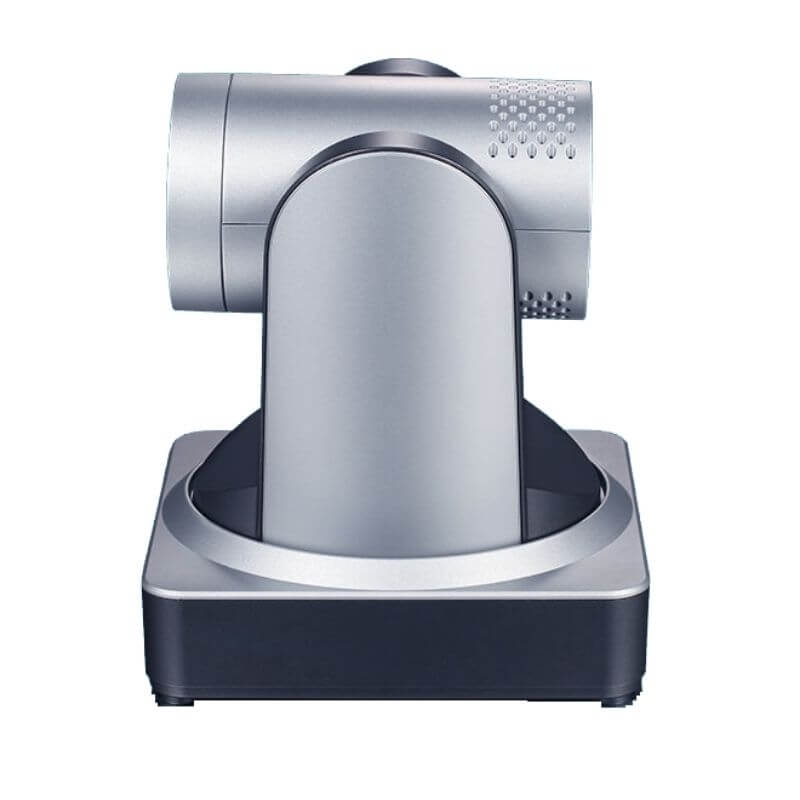

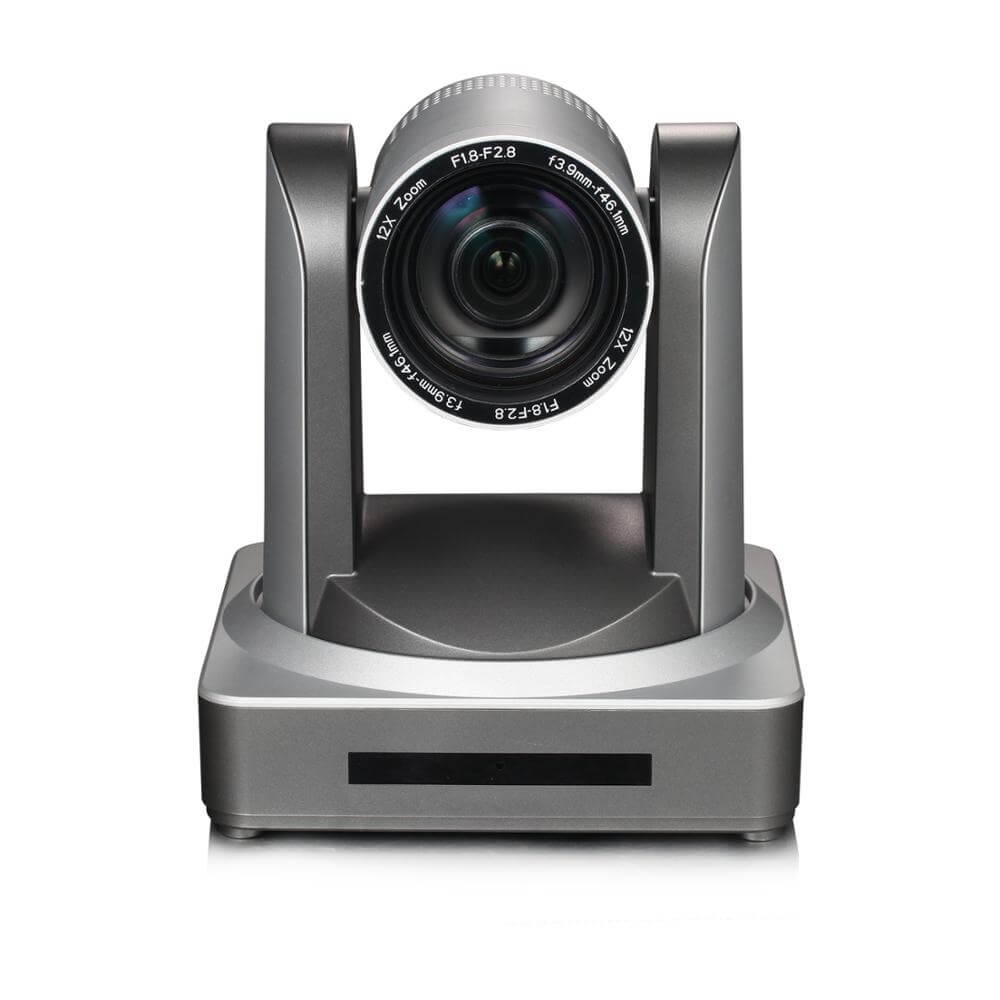

Video Conference Camera HAI-UV505
HAI-UV505
| Camera | |
| Video CMOS Sensor | 1/2.8 inch high quality HD CMOS sensor |
| Frame Rate | DVI (HDMI)/SDI video format 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97
U3 interface video format 1) U3: 1920X1080P60/50/30/25; 1280X720P60/50/30/25; 960X540P30; 640X360P30; 640X480P30; 352X288P30; 960X540P30; 800X600P30 2) U3 compatible with U2: 960X540P30; 640X360P30; 1280X720P10/15; 720X576P50; 720X480P60; 640X480P30; 352X288P30; 800X600P30; U2 interface video format: 176x144/320x240/320x180/352x288/640x480/720x480/720x576/640x360/800X600/960X540/1024X576/1024X768/1280X720/1920X1080P30/25/20/15/10/5 |
| Lens Zoom | 5X fï¼3.6～18mm |
| Horizontal Field of View | 20°(tele)—83.7°(wide) |
| Vertical Angle of View | F1.6 – F3.0 |
| Digital Zoom | 10X |
| Min Lux | 0.05 lux @ (F1.8, AGC ON) |
| DNR | 2D & 3D DNR |
| White Balance | Auto, Indoor, Outdoor, One-Push, Manual |
| Focus/Aperture/Electronic Shutter | Auto/Manual |
| Backlight Compensation | ON/OFF |
| WDR | OFF/ Dynamic level adjustment |
| Video Adjustment | Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve |
| SNR | >55dB |
| Input/Output Interface | |

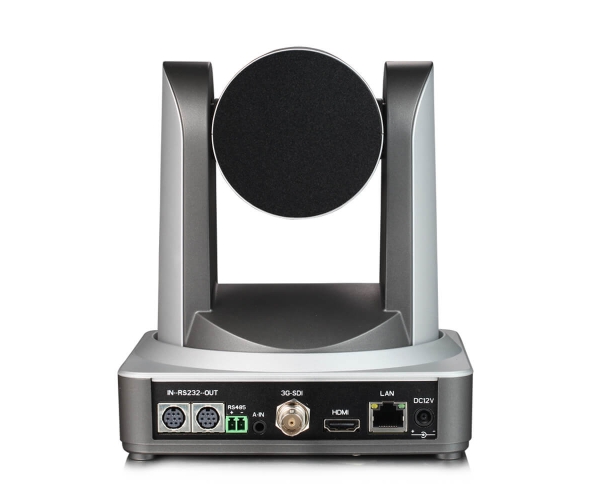

| Video Interfaces | UV510-ST Model: HDMI, SDI, LAN, RS232(Ring through RS232 output), RS485, A-IN
UV510-U2 Model: USB2.0, LAN, RS232(Ring through RS232 output), A-IN

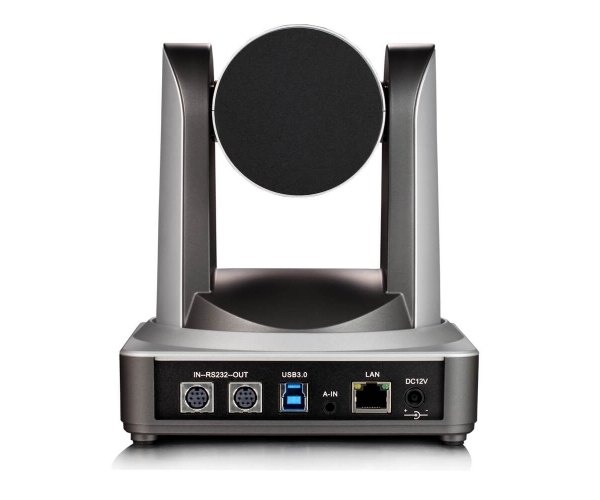

UV510-U3 Model: USB3.0, LAN, RS232(Ring through RS232 output), A-IN UV510-HDMI Model: HDMI, LAN, RS232(input) |
| Video output, Interfaces | SDI, HDMI, LAN, USB3.0, RS232 (In & Out), RS485, A-IN |
| Video Compression Format | H.264, H.265, Dual stream output |
| Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps |
| Audio Input Interface | Double track 3.5mm linear input |
| Audio Compression Format | AAC/MP3/PCM Audio compression |
| HD IP Interface | 100M IP Port(100BASE-TX); Support VISCA protocol control through IP port. |
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181 |
| Power Interface | HEC3800 Outlet (DC12V) |
| PTZ Parameter | |
| Pan/Tilt Rotation | ±170°,-30°ï½ž+90° |
| Pan Control Speed | 0.1 - 60°/sec |
| Tilt Control Speed | 0.1 - 30°/sec |
| Preset Speed | Pan: 60°/sec, Tilt: 30°/sec |
| Preset Number | 255 presets (10 presets by remote controller) |
| Other Parameter | |
| Supply Adapter | AC110V-AC220V to DC12V/1.5A |
| Dimension | 150mm*150mm*167.5mm |
| Weight | 1.4KG |
| Remote Operation (IP) | Remote Upgrade, Reboot and Reset |
| Option | PoE/NDI|HX2 |
