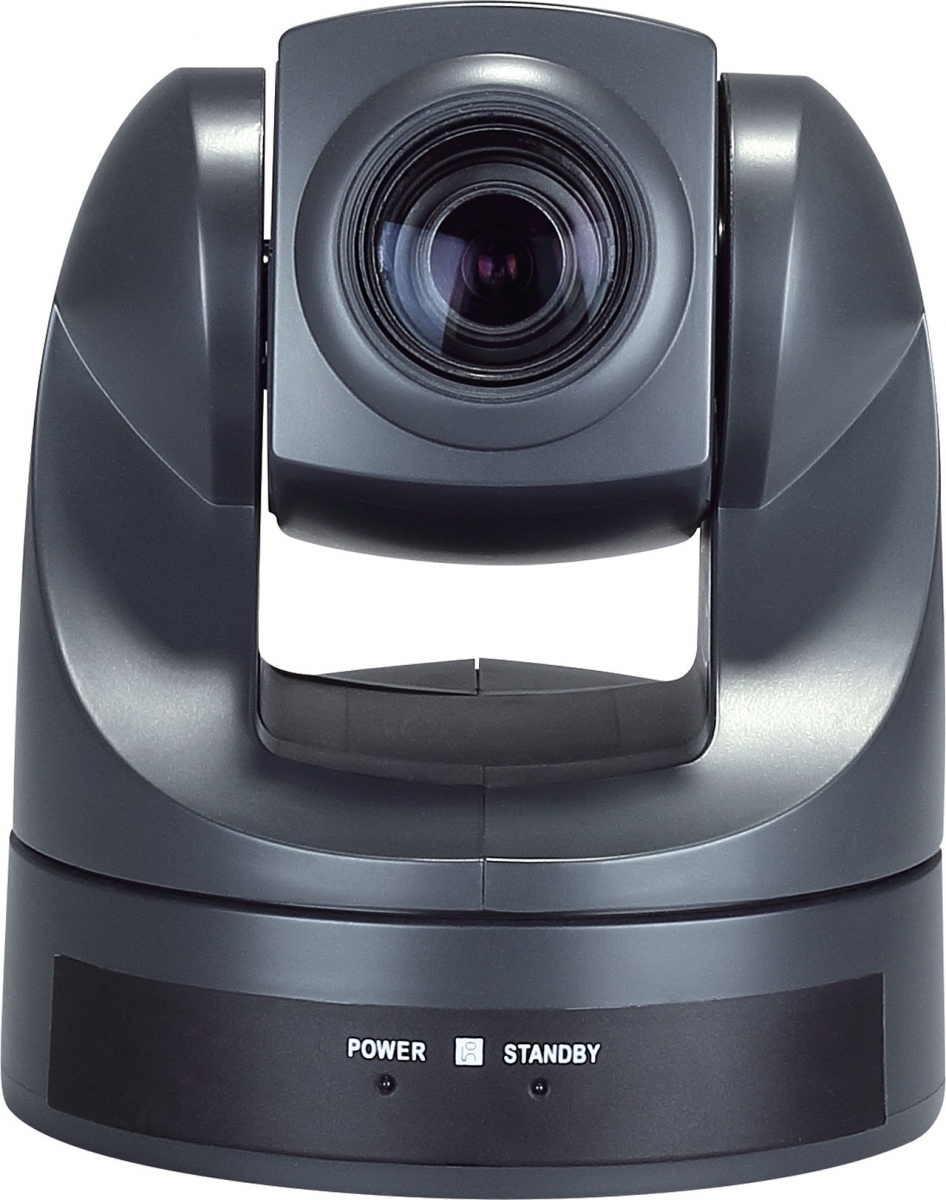

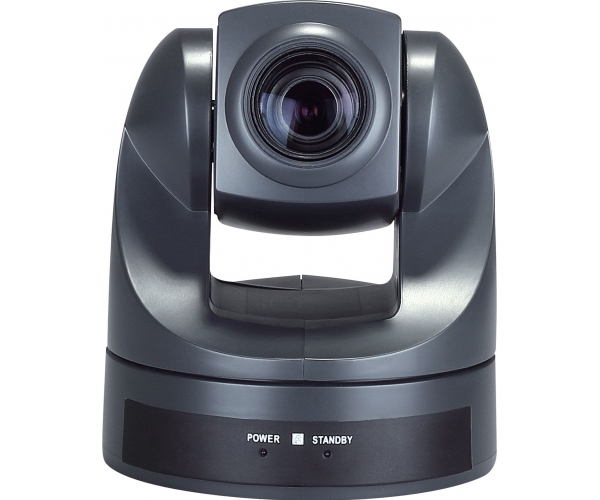

HAI-D827 | SD Conference camera

HAI-D827

1/3 inch Super HAD CCD, 440000 pixels, 650 line, 18 x optical,

360°horizontal infinite continuous rotation, 120 ° pitch range

Maximum horizontal rotational speed is 80 * Is

Vertical rotational speed of 60 "Is

7 to 200 presets with remote control

255 presets with PC control

RS - 232 c / 422 serial control

Control protocol: PELCO-Dÿ PELCO-P % VISCA

Specifications

Image Sensor:1/2.8"CMOS, 2.14MP
Signal Format(SDI): 720P60, 720P50
Focal:f=3.9mm - 46.8mm
Iris:F1.6 - F2.8
Zoom:Optical: 12X; Digital: 12X
Field of View :72.5°- 6.3°
Focus:Auto, Manual, PTZ Push, One Push
Min. Illumination:0.5lux(Color), 0.1lux(B/W)
Shutter Speed:1/25 - 1/10,000s
AGC:Auto / Manual
White Balance:Auto, Indoor, Outdoor, One Push, Manual, Auto Track
AE Control:Auto, Manual, Shutter Priority, Iris Priority
S / N:≥50dB
DNR:2D / 3D
BLC:≥Support
PTZ
Pan Range:-90°~ +90°
Tilt Range:-30°~ +90°
Pan Speed:0.1° ~ 120°/s
Tilt Speed:0.1° ~ 80°/s
Presets Number:256
OSD:Yes
Image Flip:Yes
Interface
Video Output: 1*3G-SDI Interface
Audio Input:1×LINE IN
Audio Output:1×LINE OUT
USB Interface:1×USB2.0
Control Interface:1×RS-232
Power Supply:DC12V
Power Consumption:ï¼œ15W
Working Temp:0°C ~ +40°C
Storage Temp:-20°C ~ +60°C
50mm x 163mm x 145mm
Weight: 1.2kg
