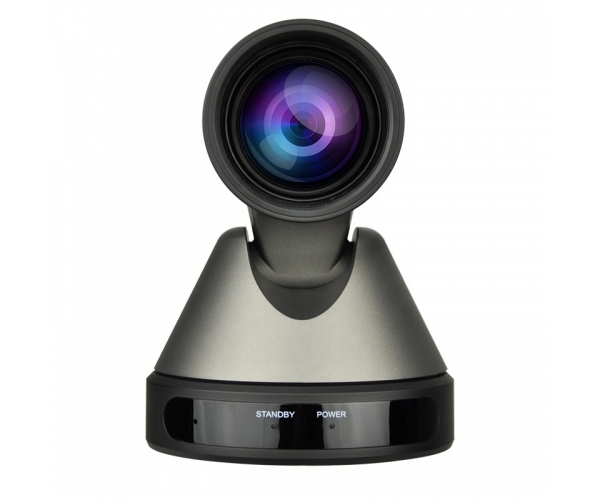

USB3.0 HD Video Conference Camera HAI-V71U2
HAI-V71U2
â—Completely New Look
Designed with worm gear transmission, completely new look, mini size.
â—Full Function USB Interface
Full function USB interface, compatibility USB3.0 and USB2.0, support audio, support compressed video output, support UVC v1.5 protocol.
â—Built-in Microphone
Built-in microphone for optional, pickup distance up to 5 meters, high sensitivity and low base noise.
â—1080P Full HD
Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.
â—Ultra high compatibility
Compatible with USB 3.0 and USB 2.0, support UVC v1.5 protocol, and support almost all video conference software on the market.
â—72.5° Wide-angle Lens + 16x Digital Zoom
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom.
â—Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.
â—Remote Control
Using RS232/USB, all the parameters of the camera can be remote controlled by the high-speed communications.
â—H.264 Slice/ H.264 SVC Support
Support Slice and SVC encoding mode, adapts to video conference of advance USB application.
â—Dual stream
Support two stream output (YUY2, MJPEG, H.264 each of both), reduce the host codec pressure
â—USB infrared transmission (Optional)
Base on customer needs, transmit infrared code value
Designed with worm gear transmission, completely new look, mini size.
â—Full Function USB Interface
Full function USB interface, compatibility USB3.0 and USB2.0, support audio, support compressed video output, support UVC v1.5 protocol.
â—Built-in Microphone
Built-in microphone for optional, pickup distance up to 5 meters, high sensitivity and low base noise.
â—1080P Full HD
Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.
â—Ultra high compatibility
Compatible with USB 3.0 and USB 2.0, support UVC v1.5 protocol, and support almost all video conference software on the market.
â—72.5° Wide-angle Lens + 16x Digital Zoom
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom.
â—Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.
â—Remote Control
Using RS232/USB, all the parameters of the camera can be remote controlled by the high-speed communications.
â—H.264 Slice/ H.264 SVC Support
Support Slice and SVC encoding mode, adapts to video conference of advance USB application.
â—Dual stream
Support two stream output (YUY2, MJPEG, H.264 each of both), reduce the host codec pressure
â—USB infrared transmission (Optional)
Base on customer needs, transmit infrared code value
| Camera | |||
| Video CMOS Sensor | 1/2.7'', CMOS, Effective Pixel: 2.07M | ||
| Frame Rate | 1080P, 720P, 540P, 480P, 360P, 240P etc. | ||
| Lens Zoom | 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 | ||
| Horizontal Field of View | 72.5° ~ 6.9° | ||
| Vertical Angle of View | 44.8° ~ 3.9° | ||
| Min Lux | 0.05 lux @ (F1.8, AGC ON) | ||
| Shutter Speed | 1/30s to 1/10000s | ||
| White Balance | Auto, Indoor, Outdoor, One-Push, Manual | ||
| Backlight Compensation | Support | ||
| Digital Noise Reduction | 2D&3D Digital Noise Reduction | ||
| Video S/N | ≥55dB | ||
| Image Freeze | Support | ||
| Ceiling Installation | Supported | ||
| Vertical Flip & Mirror | Supported | ||
| Working environment | INDOOR | ||
| Mechanical | |||
| Pan Rotation Angle | ±170° | ||
| Tilt Rotation Angle | -30°~ +90° | ||
| Pan Speed (per second) | 1.7° ~ 100°/s | ||
| Tilt Speed (per second) | 0.7° ~ 28°/s | ||
| Presets | 255 Presets | ||
| Number of Preset | 0.1° | ||
| PTZ Control Protocol | Sony VISCA and PELCO D/P | ||
| USB Features | |||
| Operate System | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android | ||
| Color System / Compression | YUV 4:2:2 / H.264 / MJPEG | ||
| Video Format | YUY2 (BULK): max to 1080P@60fps YUY2 (ISOC): max to 1080P@30fps H.264 AVC: max to 1080P@60fps H.264 SVC: max to 1080P@30fps MJPEG: max to 1080P@30fps |
||
| Audio on USB | Support | ||
| USB Video Communication Protocol | UVC 1.5 | ||
| UVC PTZ | Support | ||

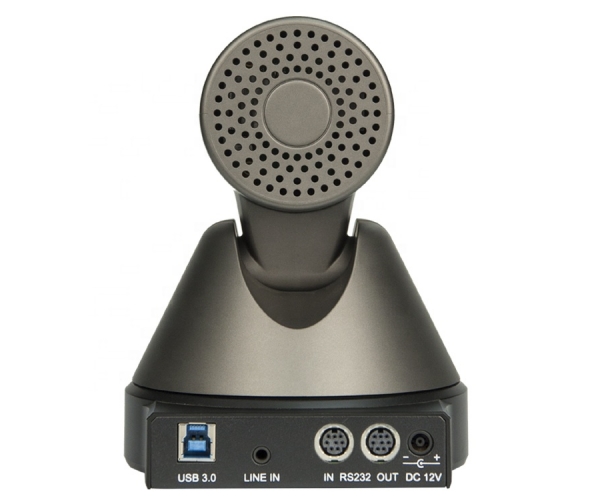

| Interface | |||
| USB | 1xUSB3.0: Type B female jack | ||
| Audio Interface | 1-ch: 3.5mm Audio Interface, Line In | ||
| RS232 In | 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P | ||
| RS232 Out | 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only | ||
| Power Jack | JEITA type (DC IN 12V) | ||
| Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only |
||
| General | |||
| Input Voltage | DC 12V | ||
| Current Consumption | 1.0A (Max) | ||
| Power Consumption | 12W (Max) | ||
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) | ||
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) | ||
| Dimensions (W x H x D) | 128.5mm x 118mm x 156.2mm | ||
| Weight | 0.91 kg | ||
