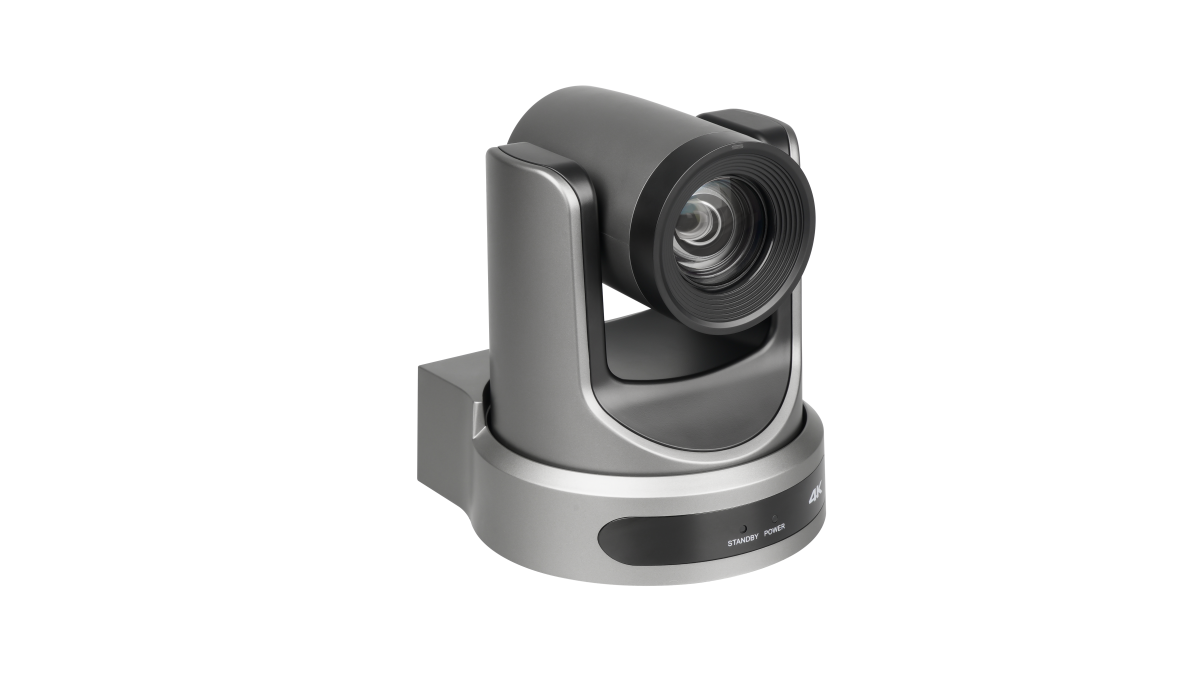

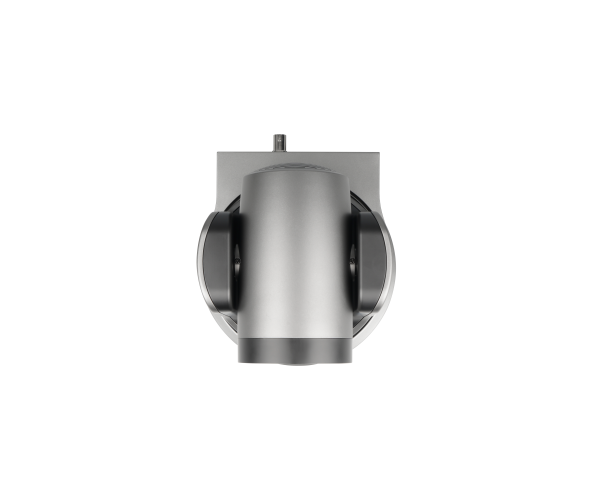

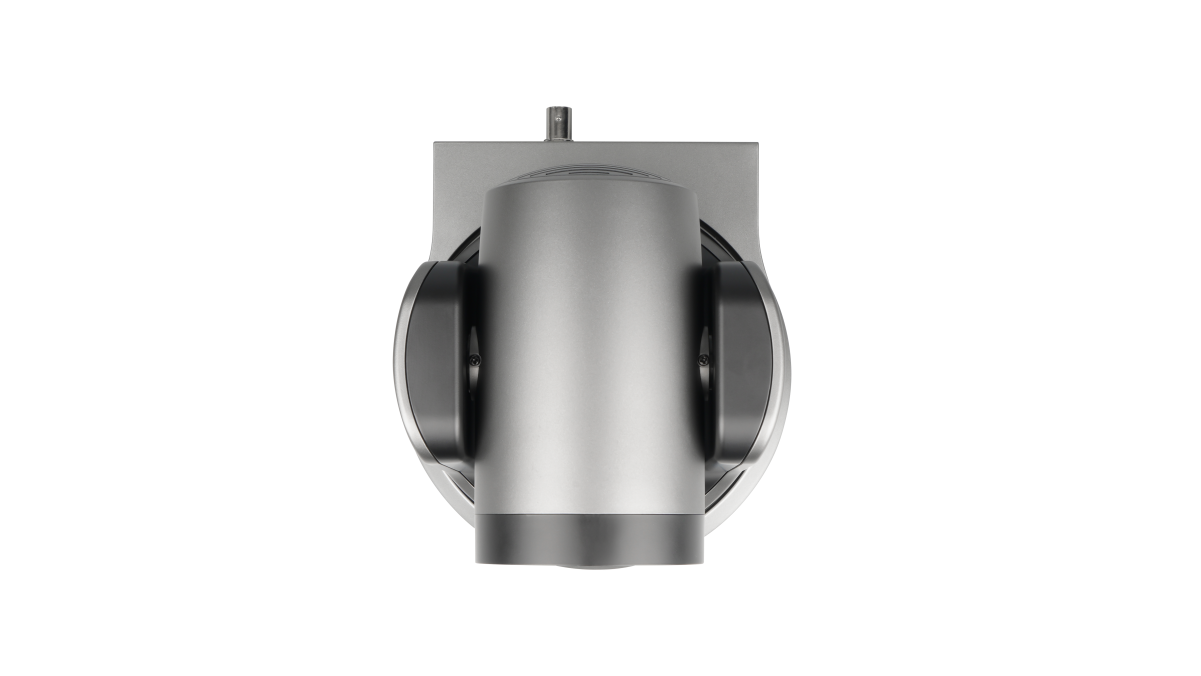

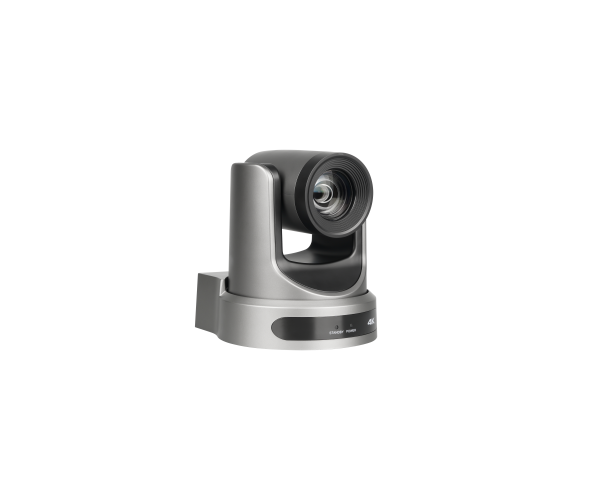

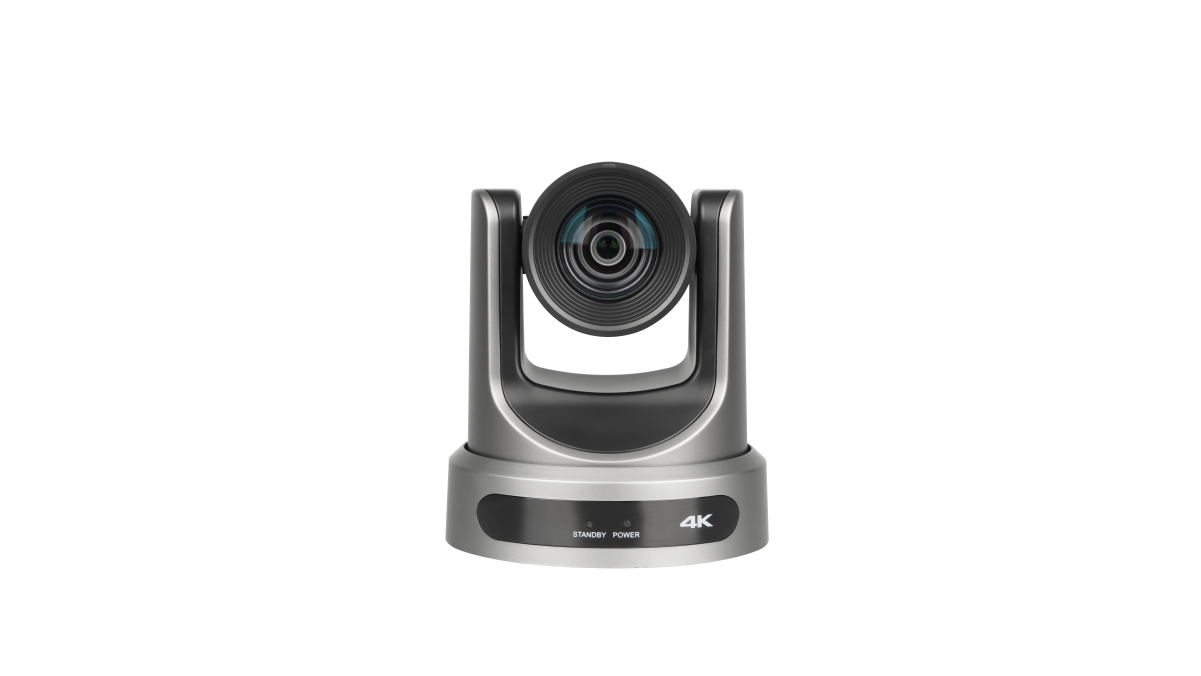

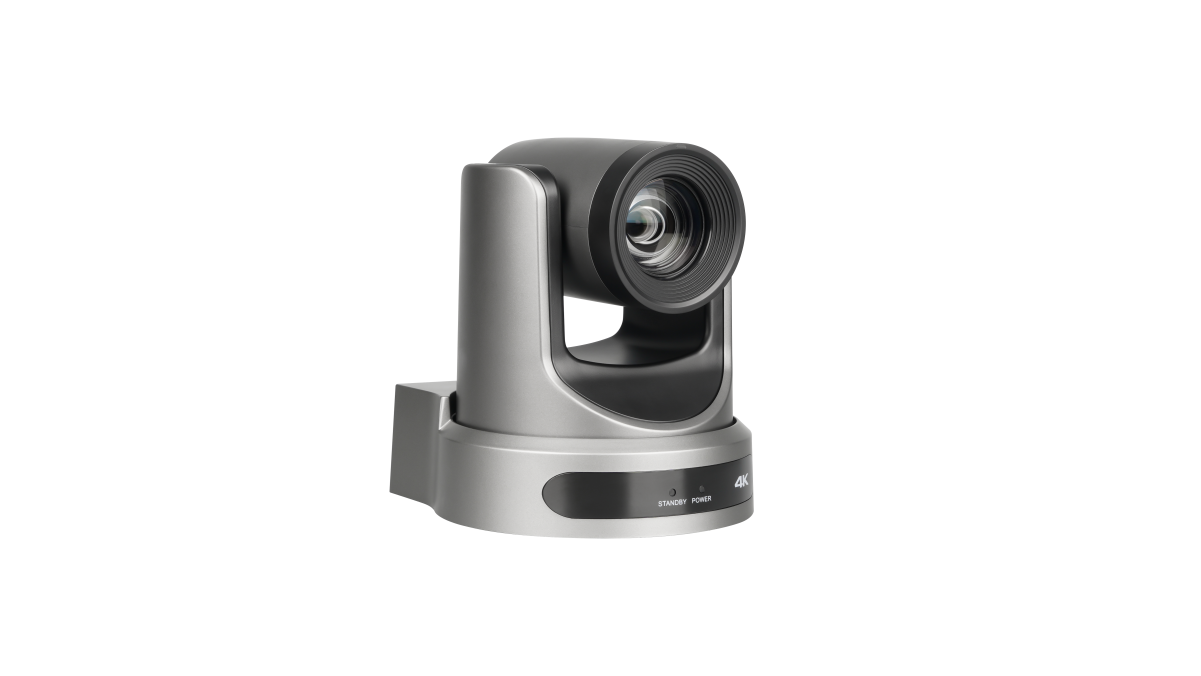

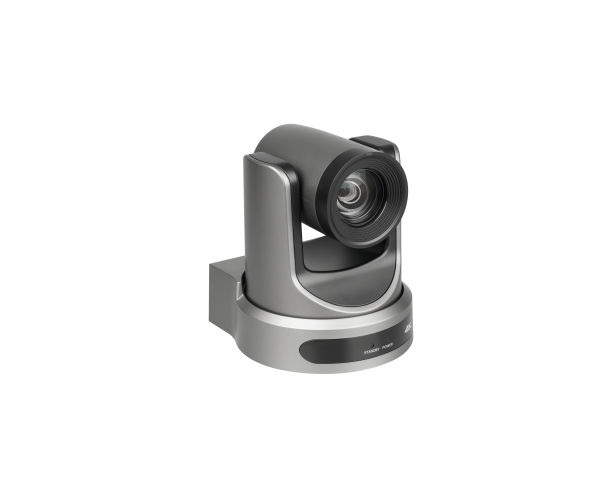

4K Video Conference PTZ Camera HAI-UHD612A
HAI-UHD612A
| Camera | |
| Video System | HDMI: 4K@25/30fps; 1080P@25/30/50/60/59.94/29.97fps; 1080I@50/60/59.94/29.97fpsï¼› 720P@25/30/50/60/59.94fps |
| 3G-SDI: 1080P@25/30/50/60/59.94/29.97fps; 1080I@50/60/59.94/29.97fps; 720P@50/60/59.94fps |
|
| Sensor | 1/2.5'', CMOS, Max Effective Pixel: 851M |
| Scanning Mode | Progressive |
| Lens | 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6 |
| Digital Zoom | 16x |
| Minimal Illumination | 0.5Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR |
| Backlight Compensation | Support |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction |
| Video S/N | ≥55dB |
| Horizontal Angle of View | 71° ~ 8.2° |
| Vertical Angle of View | 42.7° ~ 4.5° |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | -30° ~ +90° |
| Pan Speed Range | 1.7° ~ 100°/s |
| Tilt Speed Range | 1.7° ~ 69.9°/s |
| H & V Flip | Support |
| Image Freeze | Support |
| NDI/PoE | support(optional) |
| Number of Preset | 255 |
| Preset Accuracy | 0.1° |
| Network Features | |
| Video Compression | H.265 / H.264 / MJEPG |
| Video Stream | Main Stream, Sub Stream |
| Main Stream Resolution | 3840x2160, 1920x1080, 1280x720, 1024x576, etc |
| Sub Stream Resolution | 720x576, 720x480, 320x240 etc |
| Video Bit Rate | 32Kbps ~ 51200Kbps |
| H.265, H.264 | Max 60Mbps |
| MJEPG | Max 300Mbps |
| Bit Rate Type | Variable Rate, Fixed Rate |
| Frame Rate | 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps |
| Audio Compression | AAC, G711A |
| Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps |
| Support protocols | NDI®|HX, SRT, TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast |
| Input/Output Interface | |
| HD Output | 1xHDMI: 1.4b |
| 1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard | |
| Network Interface | 1 x RJ45: 10/100/1000M
Adaptive Ethernet Port,
support PoE power supply |
| Audio Interface | 1x Line In: 3.5mm Line In Interface |
| 1x Line Out: 3.5mm Line Out Interface | |
| 1x USB3.0 Type B | |
| USB | 1x USB2.0 Type A |
| Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P |
| 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only | |
| 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P | |
| Power Jack | JEITA type (DC IN 12V) |
| General | |
| Input Voltage | DC 12V / PoE (802.3af) |
| Current Consumption | 1.0A (Max) |
| Power Consumption | 12W (Max) |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Color | Gray |
| Dimensions (W x H x D) | 168.4 x 141.5 x 164.5mm |
| Weight | 1.35Kg (3.0lb) |
| Included | Remote Control/RS232 cable/Power |
| Optional | PoE, NDI|HX |
