Video Conference Camera HAI-HD630

HAI-HD630

This SDI is a 1080P cameras are equipped with a Panasonic CMOS sensor combined with a TAMRON high-quality glass lens with 30x optical zoom. Control these cameras over RS232/485 with any third party controller that supports Visca, Pelco-P/D protocols.

Specifications

Camera
Video CMOS Sensor	1/2.7'', CMOS, Effective Pixel: 2.07M
Frame Rate	1080P60/50/30/25,1080I60/50,720P60/50/30/25, 480I60, 576I50
Lens Zoom	30x, f4.42mm ~ 132.6 mm, F1.8 ~ F2.8
Horizontal Field of View	60.7° ~ 2.28°
Vertical Angle of View	34.1° ~ 1.28°
Min Lux	0.5 lux @ (F1.8, AGC ON)
Shutter Speed	1/30s to 1/10000s
White Balance	Auto, Indoor, Outdoor, One-Push, Manual
Backlight Compensation	Support
Digital Noise Reduction	2D&3D Digital Noise Reduction
Video S/N	≥55dB
Image Freeze	Support
Ceiling Installation	Supported
Vertical Flip & Mirror	Supported
Working environment	INDOOR
Mechanical
Pan Rotation Angle	±170°
Tilt Rotation Angle	-30°~ +90°
Pan Speed (per second)	1.7° ~ 100°/s
Tilt Speed (per second)	1.7° ~ 69.9°/s
Presets	255 Presets
Number of Preset	0.1°
PTZ Control Protocol	Sony VISCA and PELCO D/P
IP Features
Video Compression	H.265/H.264/MJEPG
H.265 Profiles	Main
H.264 Profiles	Base, Main, High
Web stream	Main stream, sub stream
Main Stream Resolution	1920x1080, 1280x720, 1024x576
Sub Stream Resolution	720x576, 720x480, 320x240
Bit Rate	128K, 256K, 384K, 512K, 768K, 1024K, 1536K, 2048K,3072K, 4096K, 5120K, 6144K, 8192K optional, customize
Bit Rate Type	Variable Rate, Fixed Rate
Audio Compression	AAC
Audio Bit Rate	96Kbps, 128Kbps, 256Kbps
Support protocols	TCP/IP, HTTP, RTSP, RTMP, DDMS, PPPoE, SMTP, UPnP, SNMP, Onvif, DHCP, Multicast, etc.
Video Stream	Main Stream, Sub Stream
Frame Rate	50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps

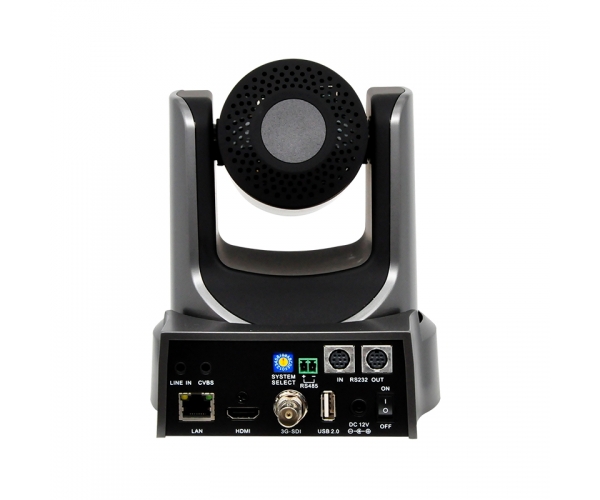

Interface
HDMI Output	Version 1.3
SDI output	3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M
SD Output	CVBS: 3.5mm mini jack, 1Vp-p, 75Ω, only 480i or 576i, not simultaneous with other outputs
Network Interface	RJ45: 10M/100M Adaptive Ethernet Ports
Audio Interface	1-ch: 3.5mm Audio Interface, Line In, for IP embedding
USB	Type A female jack, for firmware update
RS232 In	8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
RS232 Out	8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
RS485	2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack	JEITA type (DC IN 12V)
Communication Interface	1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P JEITA type (DC IN 12V)
General
Input Voltage	DC 12V
Current Consumption	1.0A (Max)
Power Consumption	12W (Max)
Operating Temperature	-10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature	-40°C ~ 60°C (-40°F ~ 140°F)
Color	Dark Gray, White
Dimensions (W x H x D)	169mm x 142mm x 164mm
Weight	1.35 kg
Included	Remote Control/RS232 cable/Power
Option	PoE, NDI\|HX
