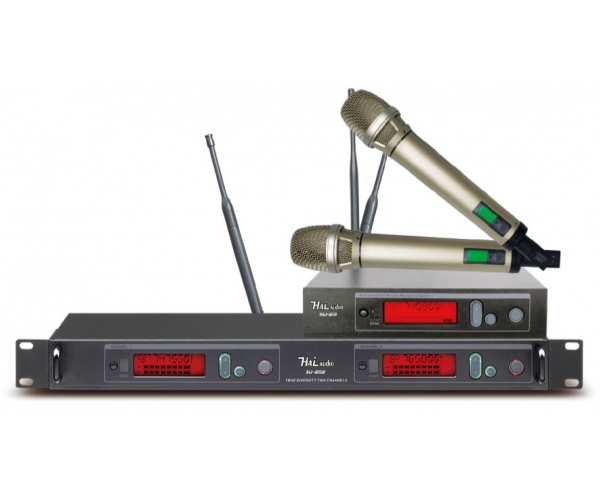

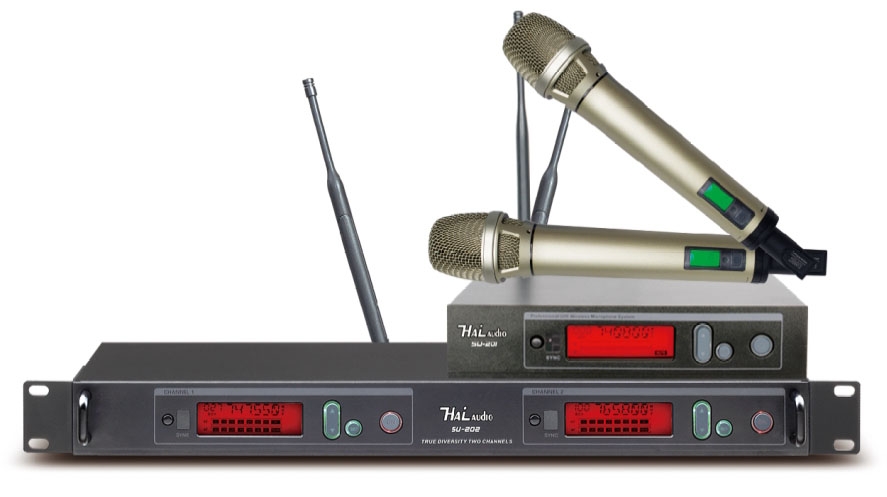

SU-202 | Dual channel true diversity wireless microphone
SU-202
- oscillation: pll synthesized
- Frequency Range: UHF 740MHz-790MHz
- Frequency Stability: ± 0.005%
- Modulation Mode): FM
- S/N Ratio>90dB T.H.D: <0.5%@1KHz
- Sensitivity: 1.2/UV @S/N=12dB
- Power supply: DC 12V-17V
- Audio Output: lndependent0-400mV
Mixed0-300mV
TRANSMITTER PARAMETER
- Power supply: DC 3V(1.5V AA x 2)
- Power consumption:100mA
- Frequency:UHF 740MHz-790MHz
- Frequency Stability: ± 0.005%
- Max. deviation Range: ± 48KHz
- S/N Ratio:>90dB
- F/N Ratio:>70dB
- Dynamic range:>100dB
- Type:moving-coil
- Frequency response:40Hz-18KHz
