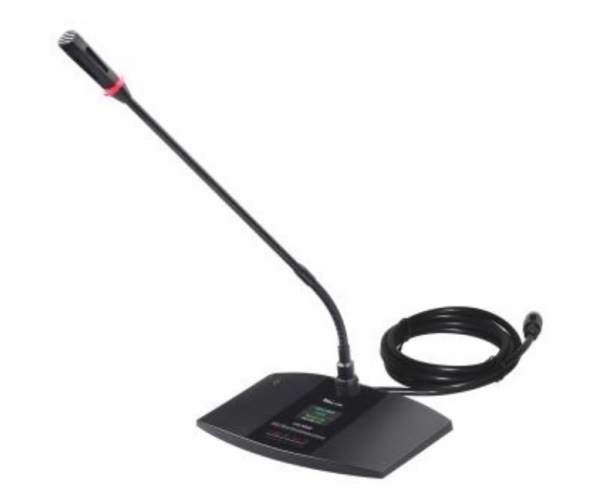

Wired video tracking conference control system HAI-4628C
HAI-4628C
Surface
» Speaking/Standby switch
» Chairman unit priority key
» 1.77 inch TFT screen display status information and setting menu
Back
» 2.1 meter unit cable with the unit
TECHNICAL PARAMETER
| Model | HAI-4628C |
| Type | Wired |
| Function | Video-tracking/Discussion |
| Microphone core | Condenser |
| Polar pattern | One direction |
| Frequency response | 50Hz-17kHz |
| Sampling rate | 48KHz |
| Sensitivity | -45±2dB@1KHz |
| T.H.D | <0.05% |
| SPL | 125dB (THD<3%) |
| Directivity | 0-180° >20Db (1kHz) |
| Input voltage | DC 24V (powered by host) |
| Power Consumption | 2W |
| Minimum input impedance | 1KΩ |
| S /N Ratio | 68dB(A) |
| Input and output wire | 2.1M 8P shielded line, 2 meter T3M cable |
| Microphone length | 44cm |
| Material of microphone shell |
ABS plastic |
| Material of gooseneck microphone |
Metal |
| Dimension(L*W*H) | 190*125*32mm |
| Weight | 950g |
| Optional color | black |
| Mounting | Tabletop( portable) |
