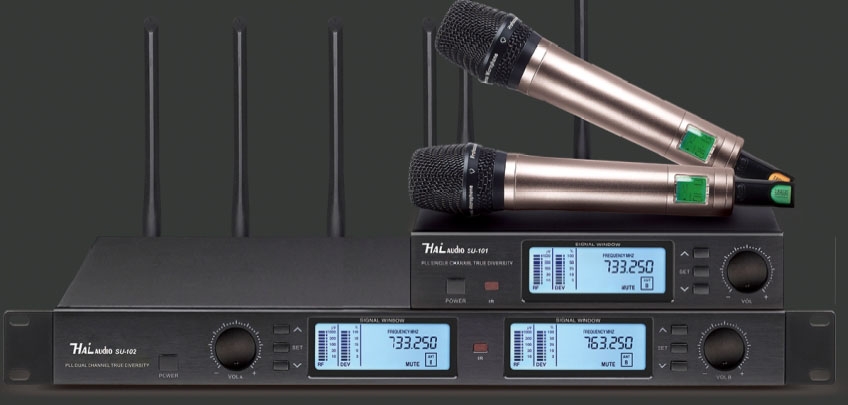

SU-102 | Dual channel true diversity wireless microphone
SU-102
- oscillation:pll synthesized
- Frequency Range: UHF 500MHz-900MHz
- Frequency Stability:±0.005%
- Modulation Mode: FM
- S/N ratio: >60dB
- T.H.D:<0.5%@1KHz
- Sensitivity:1.2/UV @S/N=l2dB
- Power supply:DC 12V-17V
- Audio Output: lndependentO-400mV
Mixed0-300mV
TRANSMITTER PARAMETER
- Power supply: DC 3V(1.5V AA x 2)
- Power consumption:100mA
- Frequency:UHF 500MHz-900MHz
- Frequency stability: ±0.005%
- S/N ratio: >60dB
- F/N Ratio:>80dB
- Dynamic range:>1OOdB
- Type:moving-coil
- Frequency response:40Hz-15KHz
- Sensitivity: -53±3dB@1KH
