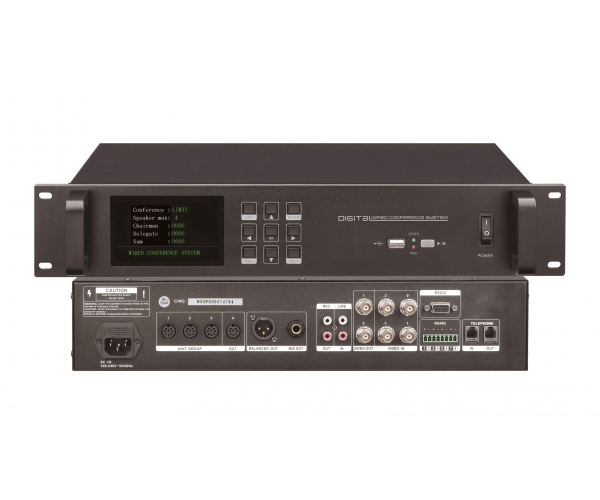

HAI-U460M | Second-generation wired discussing conference system controller
HAI-U460M
» Chairman only mode: Only the chairman device can open and speak.
» First in first out mode: (FIFO)
» Last in, first out mode: (LIFO)
» LIMIT mode: (LIMIT)
» Free Mode: (FREE)
» Question and answer mode: (Responder)
» Permission mode: (Apply speaking mode)
Audio Input: RCA x2
Audio Output: RCA x2, XLR x 1, Unbalanced 6.3mm x 1
Output voltage for delegate mic, chairman: 24DC,-5%
Frequency response: 50Hz ~ 20Khz
S/N Ratio: >90dB (1KHz THD1%)
Total harmonic distortion: <0.05%
System scalability: Connect up to 100000 chairman and delegate mic units
Dimensions (L*W*H): 480*360*85mm
Weight: 5.5 Kg
Installation: Desktop or 19” rack mount
Material: Metal
Power Consumption: 100W
Power supply: AC85v~240v, 50/60hz
Audio Output: RCA x2, XLR x 1, Unbalanced 6.3mm x 1
Output voltage for delegate mic, chairman: 24DC,-5%
Frequency response: 50Hz ~ 20Khz
S/N Ratio: >90dB (1KHz THD1%)
Total harmonic distortion: <0.05%
System scalability: Connect up to 100000 chairman and delegate mic units
Dimensions (L*W*H): 480*360*85mm
Weight: 5.5 Kg
Installation: Desktop or 19” rack mount
Material: Metal
Power Consumption: 100W
Power supply: AC85v~240v, 50/60hz
