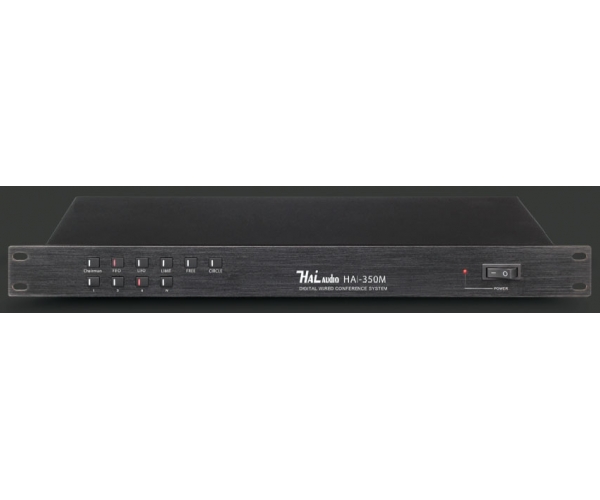

HAI-U350M | Digital wired conference system controller
HAI-U350M
• Keys on the front panel control speak mode and speak number of people. Break through the traditional draw code control.
• 1.3,6 and N people can be set speaking at the same time. LED indicator light display work status.
• Six conference model: chairman speak, first in first out, restrict speech, last in first out, open mode, vies to answer first mode.
• One controller four-way parallel control output can connect 60 microphone units totally, with the electrical load and short circuit protection function can be unlimited extension.e
PARAMETER
- Power supply: AC 100-240V 50/60Hz
- Output impedance: RCA:200Q LINE:200Q
BALANCE: 300Q
UNBALANCE: 400 O
- Input impedance): LINE:50KQ PBIN:50KQ
- S/N ratio: >90dB (1KHz THD1%)
- Size: 480x220x56mm
- Accessory : 10m 8P10m 8P shield cable
