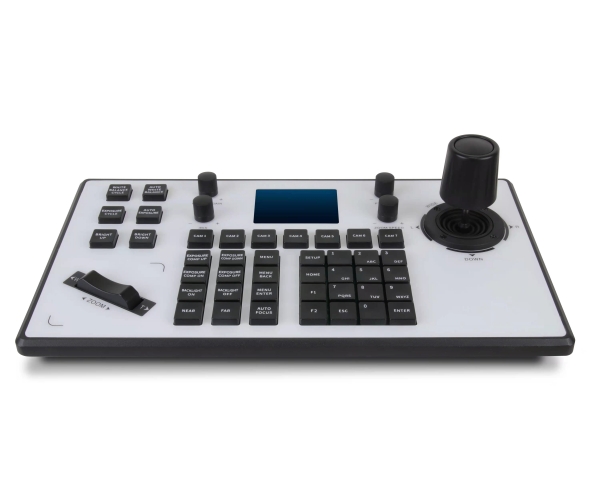

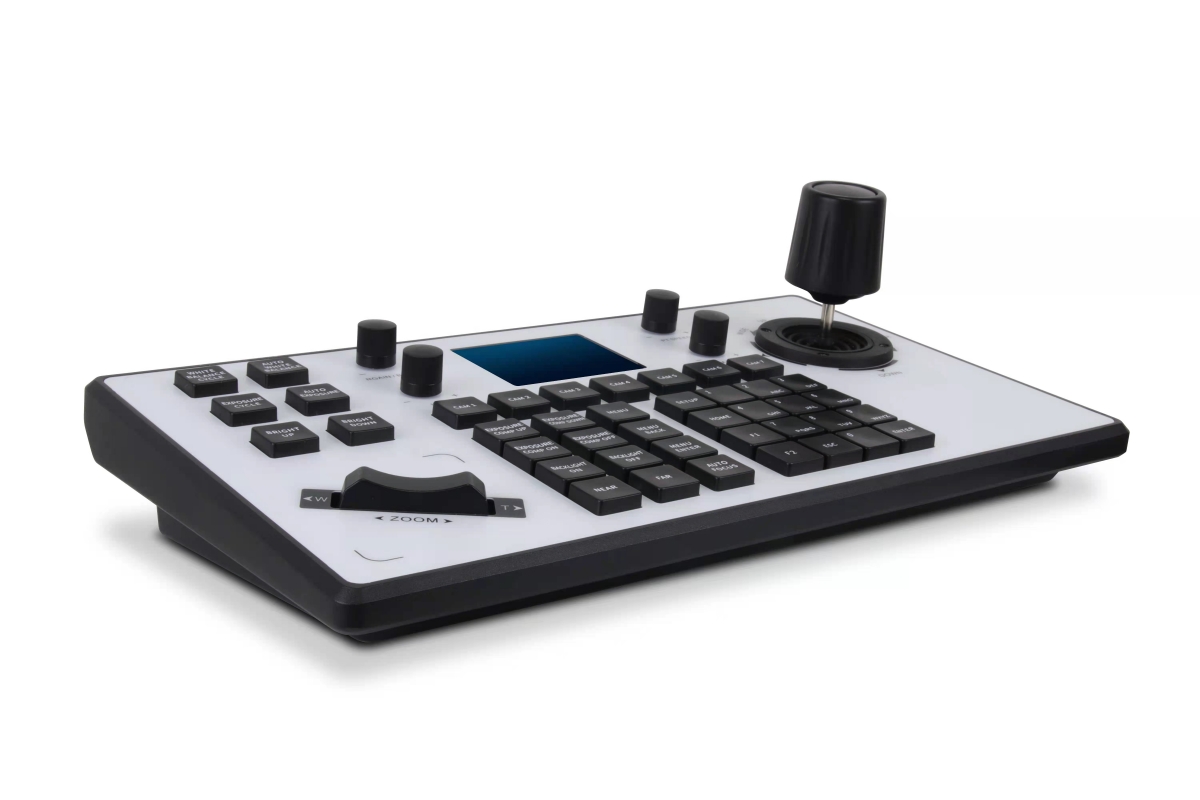

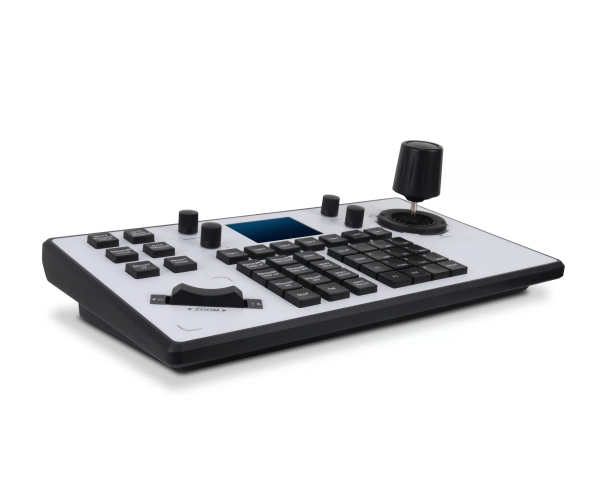

PTZ Camera Keyboard Controller HAI-KBD3000
HAI-KBD3000
Features
Specification
- Support network and analog two control modes, have independent IP addresses in network mode.
- Support VISCA, VISCA over IP, Onvif, Pelco-D/P protocols and VISCA is fully compatible
- Support software function control of conference cameras.
- Adpot high-quality variable speed 4D joystick control, comfortable operations, rotate the joystick and control the conference camera omnidirectional movements.
- Adpot addable seesaw to adjust the camera focus, operation is convenient and powerful
- Support IE browser to add camera configuration parameters
- Support up to 7 cameras shortcut control buttons for quick and easy operation
- Support standard POE power supply
Specification
| Chip | His3536DV100 | ||
| System | Linux | ||
| Protocol | Network : ONVIF, IP VISCA. Serial Port: VISCA, PELCO-D, PELCO-P | ||

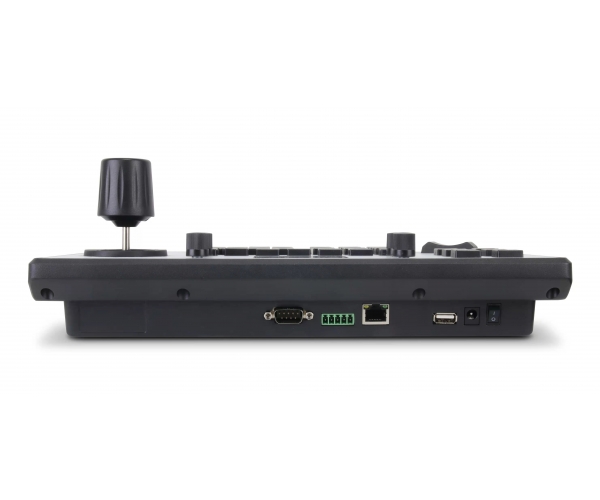

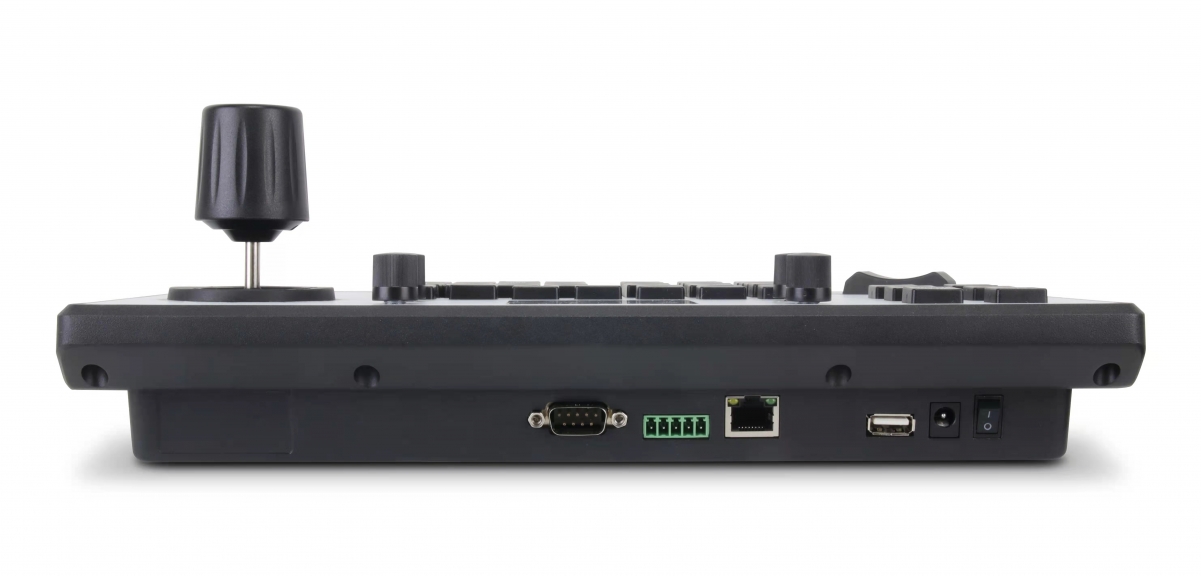

| Port | Network: RJ45. Serial Port: RS422, RS232 | ||
| Accessories | Seesaw switch, knob, mechanical button, 4D joystick | ||
| Beep | On/Off | ||
| Screen | TFT LCD 320*240 | ||
| Power Consumption | <5 W | ||
| Power Supply | DC12V-2A | ||
| Working Temperature | -10℃~55℃ / 14°F~131°F | ||
| Work humidity | 20%~80% frostless | ||
| Storage temperature | -10℃~55℃ / 14°F~131°F | ||
| Storage humidity | 0%~90% frostless | ||
| Packing size | 354*221*135mm | ||
| Outer box size and specifications | 450*355*414mm / 6 sets | ||
| Weight | 1630 G /set | ||
